Miller Smith – Heavy Duty Combination Torch Outfit with Propane/Natural Gas Tips, CGA 510 HBA-30510LP

Miller Smith – Heavy Duty Combination Torch Outfit with Propane/Natural Gas Tips, CGA 510 HBA-30510LP
Complete oxy-fuel system that can handle high gas flow for faster cutting, heating, brazing and welding. The SC200 cutting attachment can cut up to 8-inch thick steel with the appropriate tip.

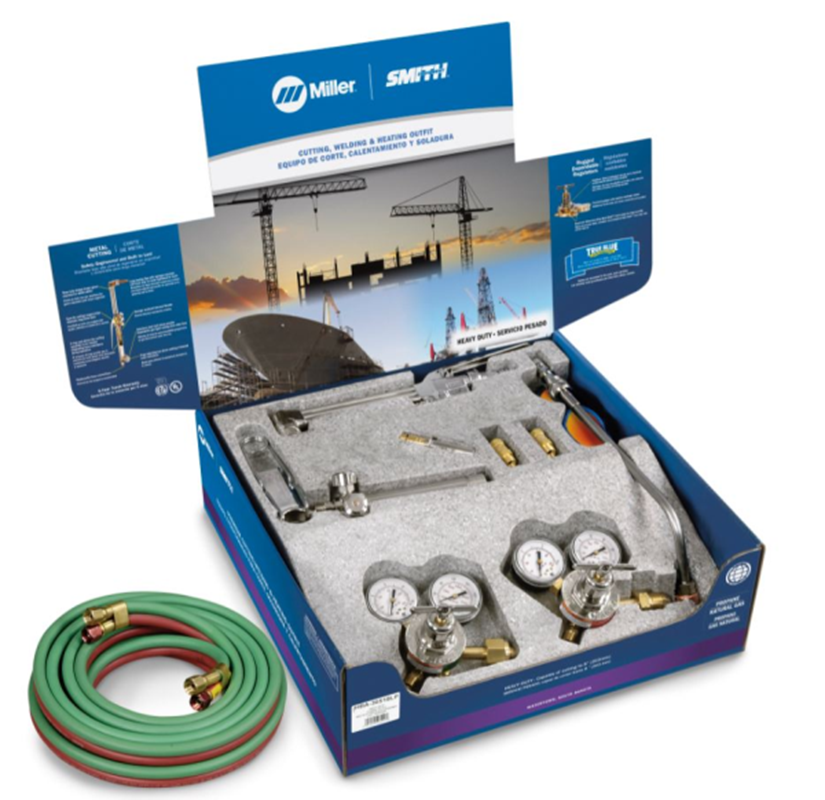

WHAT’S INCLUDED:

Torch Handle (WH200A)
Cutting Attachment (SC209)
Oxygen Regulator(30-100-540)
LPG Regulator (30-50-510)
Cutting Tip (SC40-1)
Heating Tip (ST615)
20-ft 1/4″ Twin Hose (TRL1131)
Friction Lighter (N113ANB)
Safety Glasses (78000)
Tip cleaner (N250)
Regulator Mount Check Valves (H698)
Operations Manual

Double-Tube Design

The Tube-within-a-tube design of the torch handle provides strength while reducing weight. It is Silver brazed for extra protection against leaks and allows high gas flow for a wider range of large tips for cutting, heating, welding and brazing.
Internal Threads

Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Adjustable Valve Resistance

Special PTFE packing on the torch handle provides a gas-tight seal while allowing the “drag” to be adjusted to the operator preference.
Stainless Steel Ball-Style Valves

Corrosion-resistant balls and brass seating surfaces on the torch handle provide gall resistance and positive, chatter-free seating. Riveted knobs are also featured for secure joints on the valve stem.
Replaceable Hose Connections

Connections are easily replaced if damaged.
Built-in Flo-TrolTM Valve

Eliminates seat burn out by stopping the reverse flow of fuel gas when system is low on oxygen
Slip-in Cutting Tips

Save time when changing tips – no wrench needed. All tips are hand tighten to reduce thread wear and operator fatigue.
Triple O-Ring Seal

The triple o-ring seal provides positive gas seating and allows 360° head rotation eliminating hose resistance during operation.
Universal Pre-Heat Valve

Streamline design for easy access to the pre-heat valve by right or left-handed operator
Ease-on Cutting Oxygen Valve

Allows for smooth application of cutting oxygen reducing keyholing and slag blowback when piercing.
Dual Filters Including Sure Seat™

The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
Auto-resetting Relief Valve

The regulators are built with external relief valve that releases damaging excessive pressure. It automatically reset after discharging high pressure surge.
Nickel-Plated Bonnet

The forged brass bonnet body is nickel-plated to protects against corrosion.
Durable Diaphragm

Series 30 Medium Duty regulators have a diaphragm made of highly durable neoprene composite.
Shatter-Resistant Gauge Lenses

Series 30 Medium Duty Regulators feature easy to read 2″ painted steel gauges with shatter-resistant polycarbonate lenses.
In-Tip Mix

Each cutting tip is precision engineered mixer for combining preheat oxygen and fuel gas for maximum efficiency. The small volume of mixed gas at the tip adds resistance to flashback, far downstream and away from the operator for safety.
Graf-TiteTM Soft Seat

This high pressure seat material protects tip from nicking to maintain positive seating for longer tip use. The compressible soft seat can withstand extremely high temperatures resulting in less tip replace metal-to-metal seat design.
SC40 Series (Two-Piece) Heavy Duty Cutting Tips

Two-piece medium preheat cutting tips for general hand and machine cutting with propane, propane-based fuel gases and natural gas. SC40-1 can cut from 1/2 in. (13mm) to 5/8 in. (16mm) thick metal.
SW200 Series Heavy Duty Welding Tip

The SW200 series is for general and heavy welding and brazing with acetylene gas. Swaged construction provides greater heat concentration for improved “puddle” control. Slip-in and hand tighten for 360° rotation eliminating hose resistance during operation. SW205 can weld up to 1/8 in. (3mm) thick metal.
Heavy-Wall Copper Welding Tip Design

Heavy-wall copper gives greater resistance to reflected heat, permits cooler operation, and dissipates more heat. Heat-absorbing tips provide longer life, and the long straight-away design permits tip refacing after excessive wear or abuse.
Three-tube Design

Features a three-tube construction which keeps gases separated, eliminating mixing tube burnout and keeping the operator safe. The thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength. Nickel-plated to deflect heat.
Heavy Duty Cutting Attachment

Cuts up to 8-inch (203 mm) thick steel.
