Miller Spoolmate 200 Series Part #300497

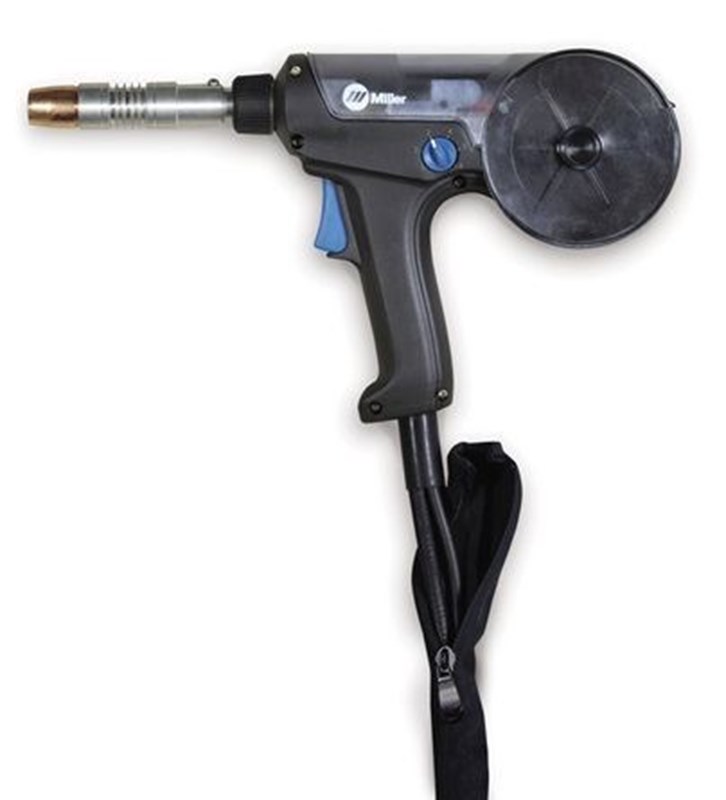

Miller® Spoolmate™ 200 MIG Spoolgun 300497
Genuine Miller® Spoolmate™ 200 MIG Spoolgun is a 160 amp, 60% duty cycle MIG spool gun with 20 ft. leads. The Spoolmate 200 is highly reliable and provides excellent feeding of aluminum MIG welding wire. It weighs only 11 pounds (including the 20 ft gun cable) and comes standard with heavy-duty gun barrel and strain relief.

Process

MIG welding (GMAW) with Aluminum and other soft alloy wires
Applications

Light Duty Applications

Aluminum Fabrication

Home Maintenance and Repair

Auto and Marine Repair
Features
Light Industrial spool gun rated at 160 amps at 60% duty cycle. Ideal for welding with .023 – .035 wires.
20 ft direct-connect cable with heavy-duty strain relief provides extended reach and accessibility to your work.
Wire speed adjustment located on the gun handle allows the user to conveniently change wire speed directly from the spool gun. Saves time by eliminating the need to walk back to the welding machine to change the wire feed settings.
Easy access to drive assembly reduces service time by allowing easy access to drive rolls or performing routine maintenance without disassembly of gun.
Built-in gas valve eliminates the need to purge long gas lines.
Gas lines routed internally means that the gas line won’t get in the way of the work.
Hinged wire spool cover makes it easy to access wire compartment.
Pressure lever for easy loading and unloading of wire.
Adjustable drive roll tension for feeding different types of wire.
Comes standard with heavy duty barrel.
Easy to remove barrel options with several optional barrels that allow for welding in tight spaces and corners.
Direct-Connect compatible with

All Millermatic®, Multimatic™ and select Miller® engine driven welders.

Comes complete with
20′ cable and hose
Drive rolls
2 – .030 in contact tips
2 – .035 in contact tips
1 – nozzle.
