Millermatic 252 MIG Welder 208/230 Volt 907321

Millermatic 252 MIG Welder 208/230 Volt 907321
The Miller® 252 MIG welder 907321 is a 250 amp, all-in-one MIG welding package that provides a superior arc when welding 22 gauge up to 1/2 in metal. The Millermatic® is engineered for performance, the Active Arc Stabilizer provides the most consistent arc starts in its class along with optimum weld performance in all settings. Experience superior welding with Miller® Millermatic® 252. The Miller® 907321 Mig Welder has specific features to ensure safety and ease while you complete projects efficiently.
The Miller® Millermatic® 252 offers an aluminum welding setup is easy with the direct hookup of the optional Spoolmatic 30A. The Miller® 252 includes Miller’s exclusive Auto-Gun-Detect, simply pull the trigger for either gun and you’re ready to weld.
The Miller® 252 features direct plug for XR push-pull gun for professional aluminum wire feed capability. XR-type guns can be directly connected to the Millermatic 252. This allows you to use 12 inch rolls of wire instead of the more expensive 1 lb rolls with the spoolgun. Another reason the Miller® 252 continues to lead in quality welding equipment.

Miller® 252 Processes

MIG (GMAW)
Flux Cored (FCAW)Miller® 252 Applications

Metal Fabrication

Maintenance and Repair

Farm/Hobby

Light Industrial ApplicationsShop the Miller® Millermatic® 252.

Miller® 252 Features:
Highest output in its class (250 A at 28 VDC). Weld longer on high-end applications.

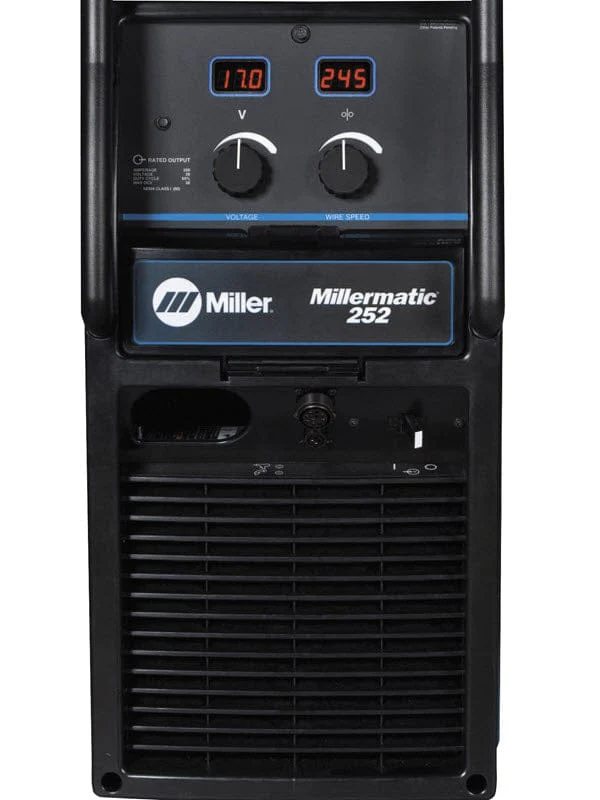

A large, digital front panel with a built-in digital timer menu enables the operator to preset voltage and wire feed speed. Standard run-in, pre/post flow, burnback, spot/delay (stitch) timer menu.
Auto Gun Detect™ allows the operator to simply pull a trigger on MIG gun, spool gun, or push/pull gun. Automatically detects and recalls the voltage, wire feed.
Push-Pull Gun Direct Connect – now directly connects your push-pull gun, no extra module is required.

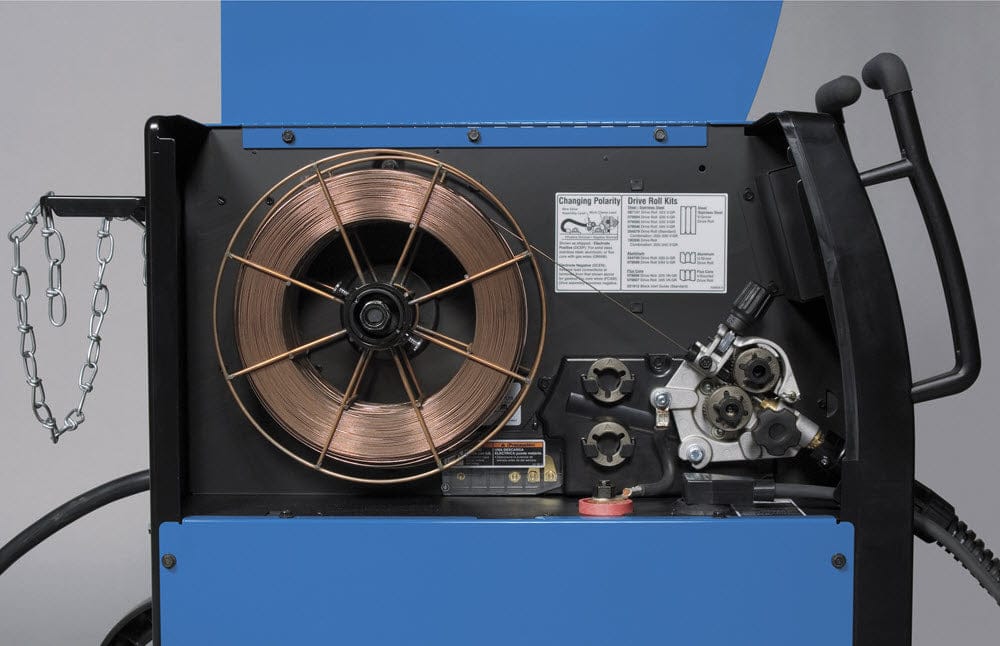

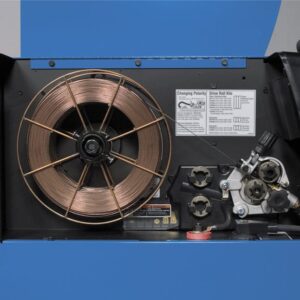

Angled, dual-gear driven, cast aluminum drive system features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
EZ-Change™ Low Cylinder Rack allows operators to roll cylinders on and off of the rack easily – no need to lift cylinders.
EZ-Access™ Consumable Compartment and Parameter Chart – set weld parameters right the first time with a convenient new flip-down compartment that provides fast access to the parameter chart and consumables.
Less weld cleanup with Active Arc Stabilizer™ patented Miller design provides excellent starts proven superior to the competition.
Fan-On-Demand™ cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.
Line voltage compensation keeps power constant even if input voltages varies by +/-10%.Specs

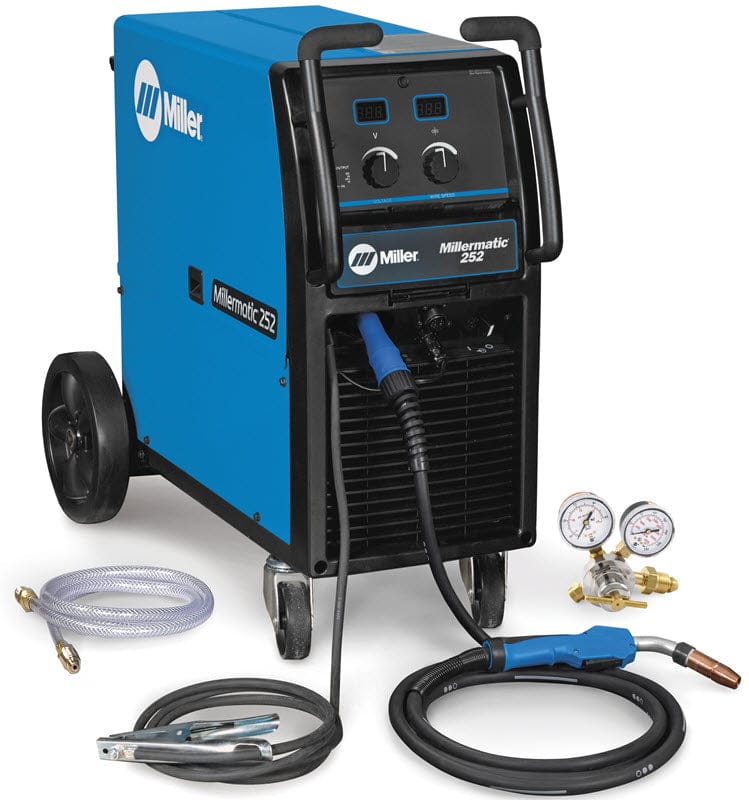

Miller® 252 comes complete with:
Millermatic 252 MIG Welder wired for 208/230-volt input power
15 ft (4.6 m), 250 amp MDX™-250 MIG gun for .030/.035 in wire
10 ft (3 m) Work cable with clamp
Factory-installed gas solenoid
Argon mix regulator/flow gauge and hose
10 ft (3 m) power cord and plug (200/230 V model only)
Factory-installed running gear with EZ-Change™ Low Cylinder Rack
.030/.035 in reversible drive rolls
Extra contact tips
