ESAB Ruffian ES 150G Engine Driven Welder 0707070150

ESAB Ruffian ES 150G Engine Driven Welder 0707070150

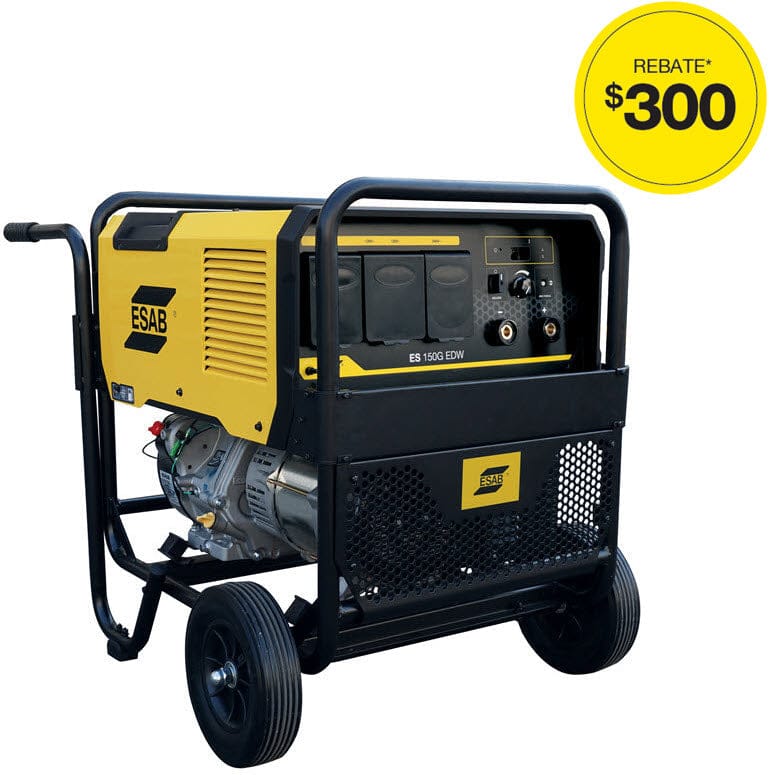

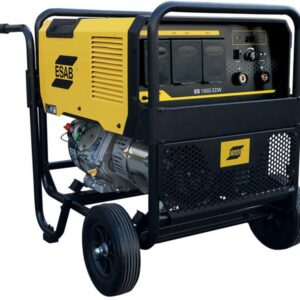

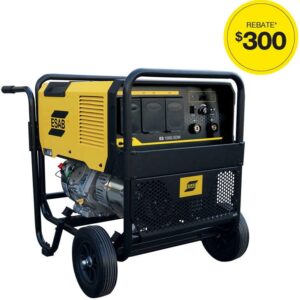

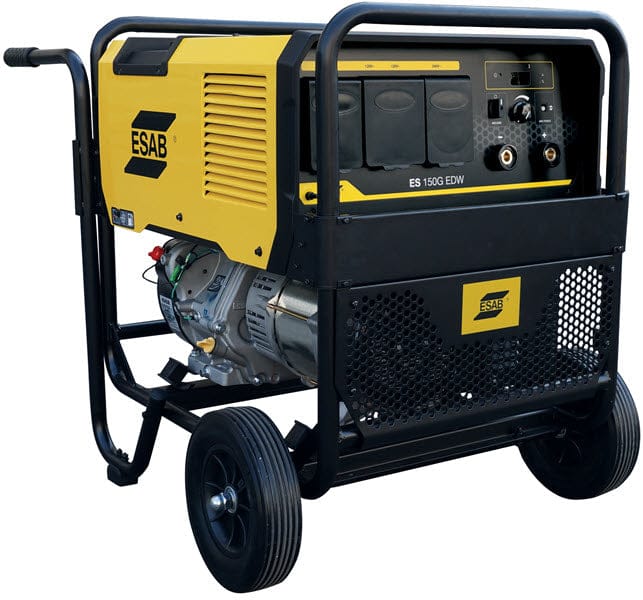

The ESAB Ruffian ES 150G is a 150 amp portable gasoline engine driven DC Stick welder and 4,500 watt AC generator. The Ruffian weighs less than 250 lbs. fully assembled. Its large, industrial grade wheels and heavy duty, removable handles make the Ruffian easy to move around the job site. Ruffian’s 14 HP Kohler® Command PRO CH440 engine is both reliable and efficient.
The Ruffian’s 150 amps of stick welding output and peak 4,500 watts of AC auxiliary power can be used simultaneously, without sacrificing welder or generator power. The inverter design of the welder produces a smooth, stable stick welding arc. Arc Force Control ensures reliable arc starts, even when using E6010 and E7018 welding electrodes. The AC generator features two 20 amp, GFCI duplex receptacles and one 240 volt receptacle. It can be used for tools, lights and even for powering small welders and plasma cutters.
The Ruffian ES 150G comes complete with five gallon fuel tank, wheelbarrow-style undercarriage, digital meter, integrated fuel gauge with service interval display and ESAB’s 3-year warranty.
Process

Stick (SMAW)
4.5 kW Peak AC Generator (4.0 kW continuous)
Applications

Farm Equipment

Civil Construction

Industrial and General Fabrication

Repair and Maintenance

Features
ESAB’s stick welding DNA

Equipped with the latest DC inverter technology to ensure a smooth, stable welding arc

Strong welding output of 60% duty cycle at 150 A

Welds up to 5/32 in. rods on a 4.5 kW machine, including 6010, 6011, and 7018
Premium Kohler Gasoline Engine

Reliable 14 HP engine and an efficient five-gallon gas tank for up to 4.5 kW of peak power all day long

Manual rope start
Weld and Run Tools at the Same Time

Welding output is independent from generator power so you can run tools simultaneously without worrying about adjustments to welder settings

Four 120 V outlets and one 240 V outlet with covers and circuit breaker protection

Versatility to run a variety of tools, including grinders, circular saws, lights, air compressors, and drills – even light-duty welders and plasma cutters

Can be used as emergency backup for household appliances with 4.5 kW of starting power and 4 kW of continuous power

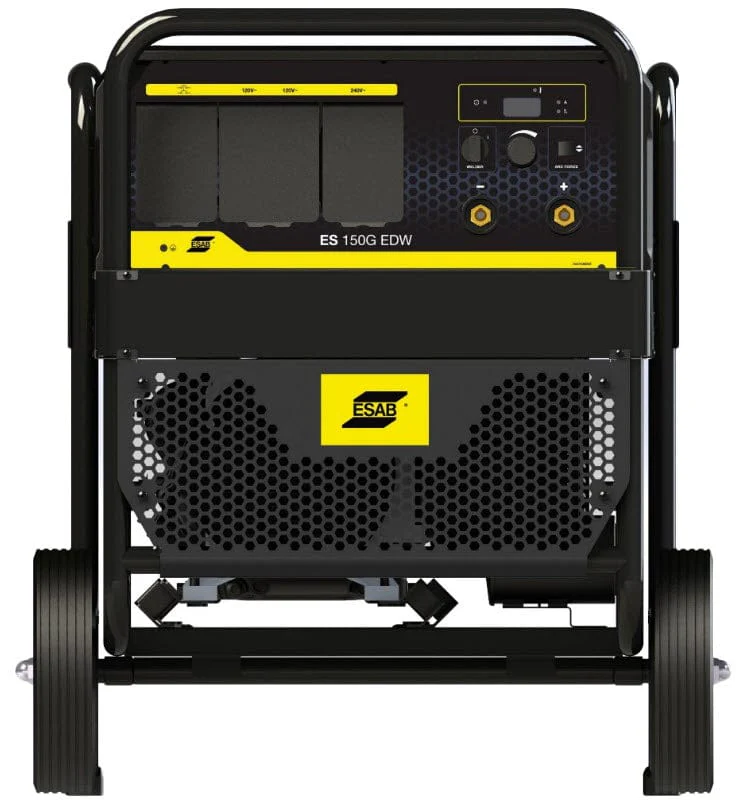

Instinctive Operator Interface

Adjustable arc force (0 to +10) to stabilize the arc and prevent electrodes from sticking

Bright digital display that can be read from far away or in sunlight

Convenient, detachable lead connections – compatible with ESAB’s 200 A electrode holder and ground clamp

Integrated engine-hour meter to monitor service intervals
Work Absolutely Anywhere

Ergonomic, removable handles balance weight while maneuvering

Industrial-grade wheels with maximum ground clearance

Protected by IP23S weather-resistant housing and a rugged tubular steel frame

Compact 248 lb. package is truck mountable with lift-eye options to go wherever your work is

ESAB’s industry-leading service and support means that if you do need help with your welder, you will be protected. 100% SATISFACTION GUARANTEE means that if there’s anything you’re not completely satisfied with in your first 100 days with your new welder, ESAB will make it right, even if it means giving you your money back. It’s all part of ESAB’s Iron Clad Pledge to its customers.
