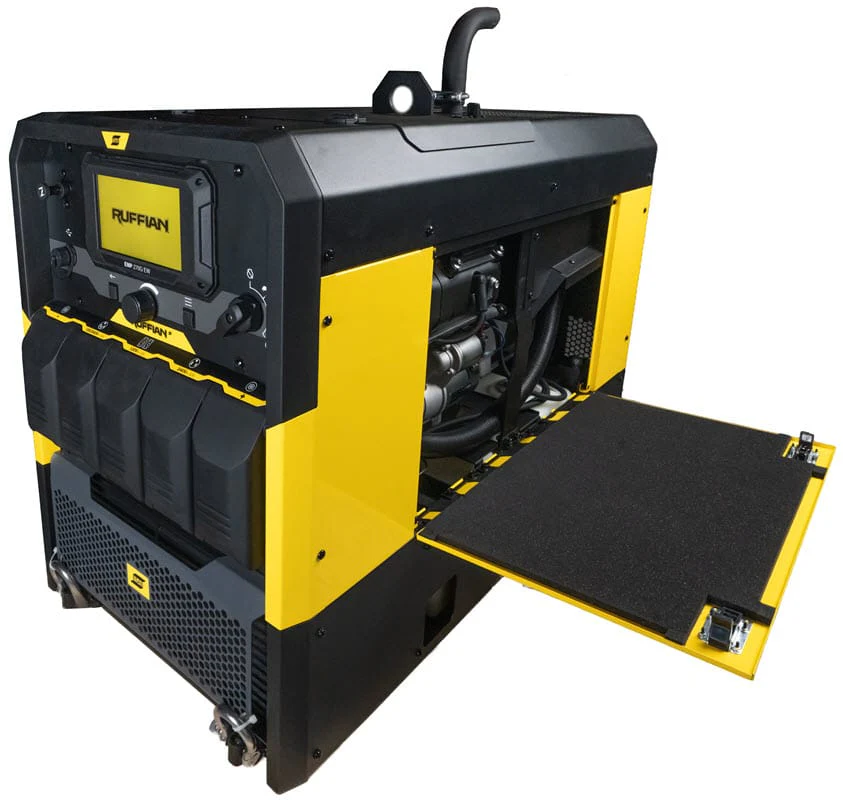

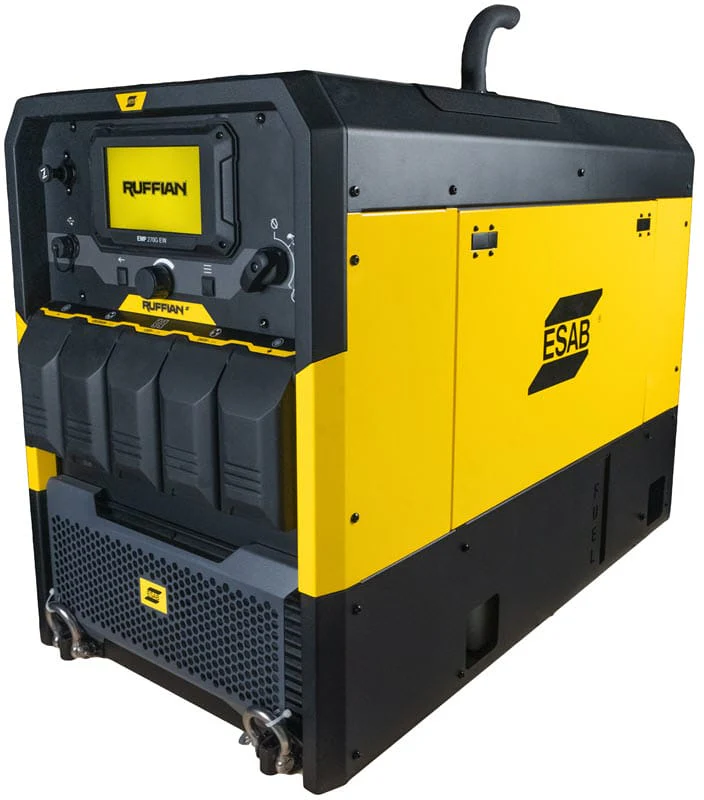

ESAB Ruffian EMP 270G Engine Driven Welder 0707070270

ESAB Ruffian EMP 270G Engine Driven Welder 0707070270
The ESAB Ruffian EMP 270G is a 270 amp portable gasoline engine driven multi-process welder and 11,000 watt AC generator. The Ruffian 270G is capable of performing Stick, MIG and DC TIG welding. Its large 7-inch color TFT display and intuitive user interface make this welder a breeze to set up and operate. Output settings, weld processes, material thickness and electrode types are shown in high-contrast graphics that are visible from far away. The maintenance screen clearly displays life cycle status of critical engine wear items including: engine oil, spark plugs, air filter, fuel filter and oil filter. Ruffian’s two cylinder air-cooled 23.5 HP Kohler® CH730 engine is the industry standard for performance and reliability.
The Ruffian’s 270 amps of welding output and peak 11,000 watts of AC auxiliary power can be used simultaneously, without sacrificing welder or generator power. The inverter design of the welder produces a smooth, stable welding arc over a wide range of welding processes. Arc Force Control ensures reliable arc starts, even when using E6010 and E7018 welding electrodes. The AC generator features four 20 amp, GFCI duplex receptacles, one 50 amp 240 volt receptacle and one 50 amp 120/240 volt hybrid receptacle. Generator power can be used for tools, lights and even for powering welders and plasma cutters. The Ruffian ES 270G comes complete with an eleven gallon fuel tank, 7-inch TFT digital display and ESAB’s 3-year warranty.

Process

Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Carbon arc gouging (CAC) with 3/16″ carbon electrodes
11 kW Peak AC Generator (10.5 kW continuous)Applications

Agricultural Equipment

Civil Construction

Equipment Rentals

Offshore Oil

Pipeline

Repair and Maintenance

Training Schools

Backup or supplementary power
Features
Robust output

Welding – delivers 270A at 100% duty cycle

AC Generator – 11,000 peak and 10,500 continuous watts of independent auxiliary power

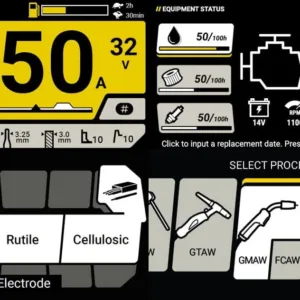

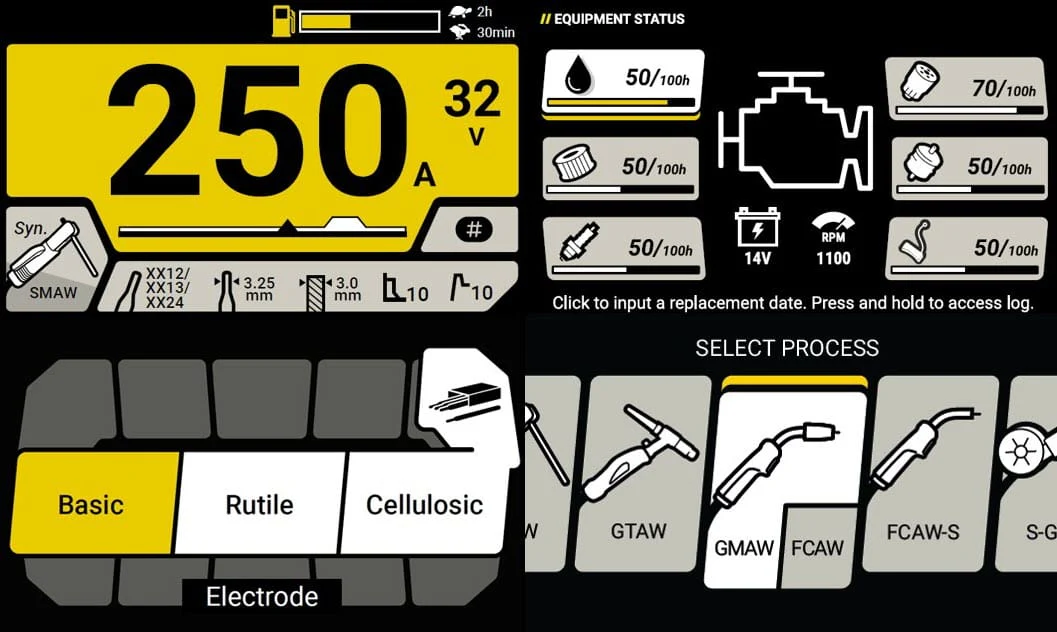

7 in. TFT digital display

With large, high contrast numbers easily readable from a distance

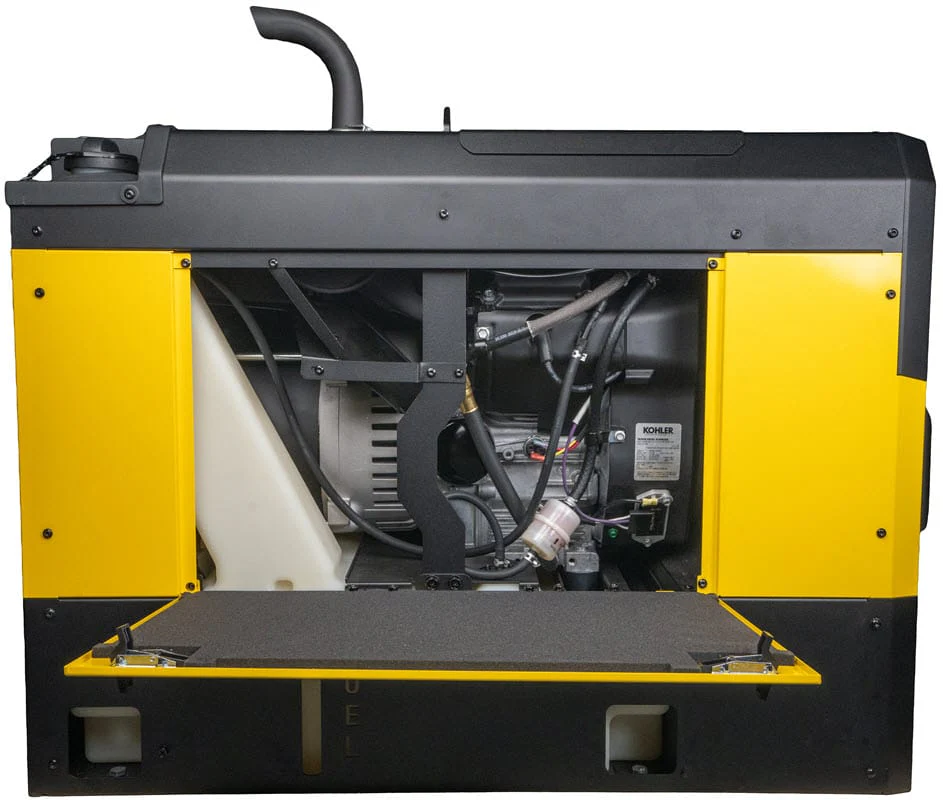

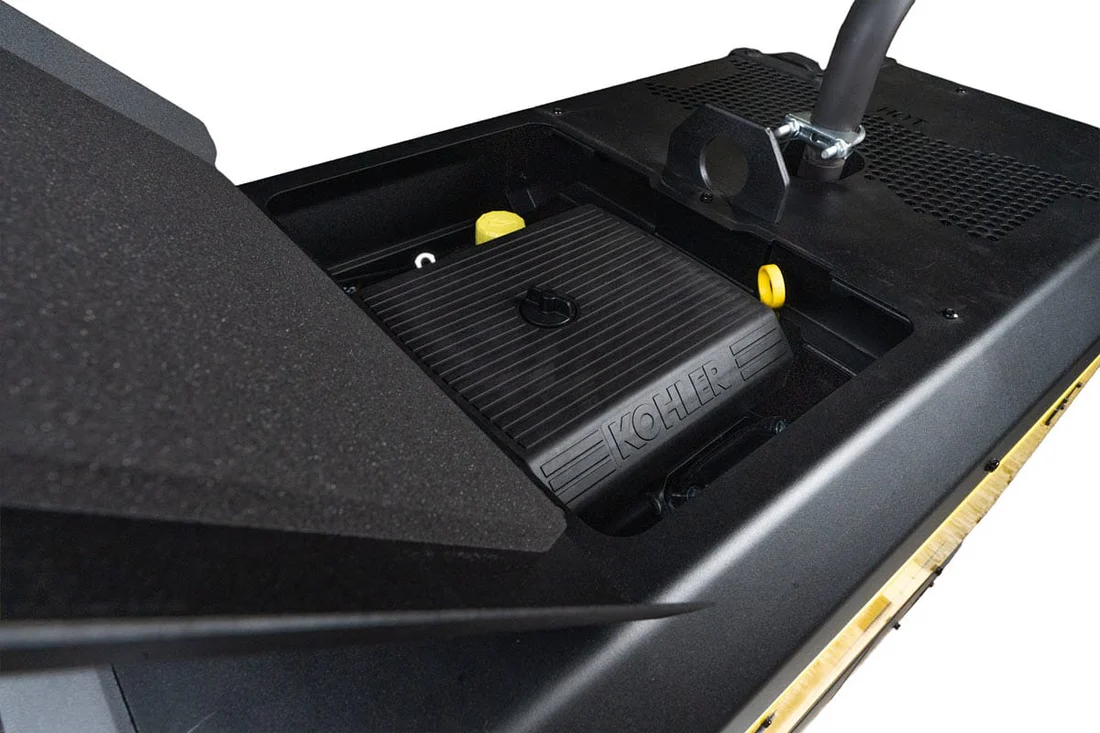

Trusted CH730 Kohler ® 23.5 HP gasoline engine

With exceptional power and reliability
Independent auxiliary generator output from the welding current

Allowing simultaneous use of electrical tools and even other welders or plasma cutters

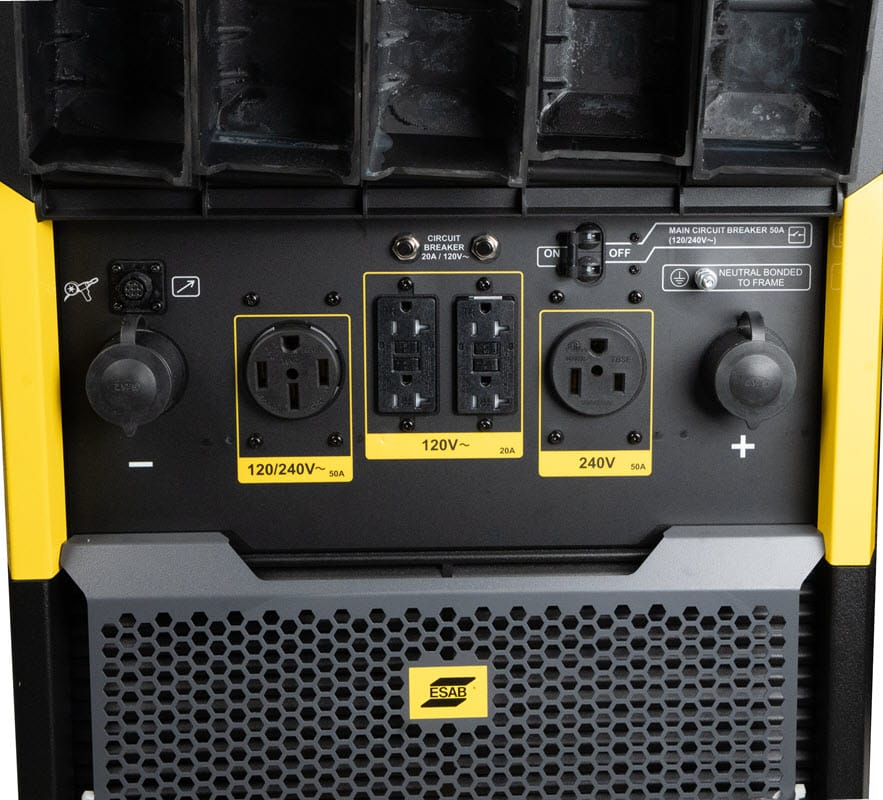

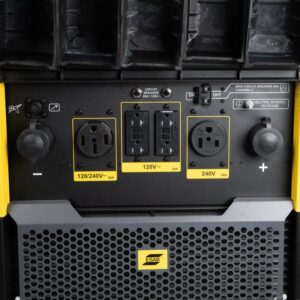

Multiple receptacles available

Four 120VAC 20A (GFCI), one 240VAC 50A (6-50R) and one 120V/240V 50A (hybrid), all protected by circuit breakers and rubber covers
Direct spool gun connection

Tweco® Spool Gun 250 compatible.

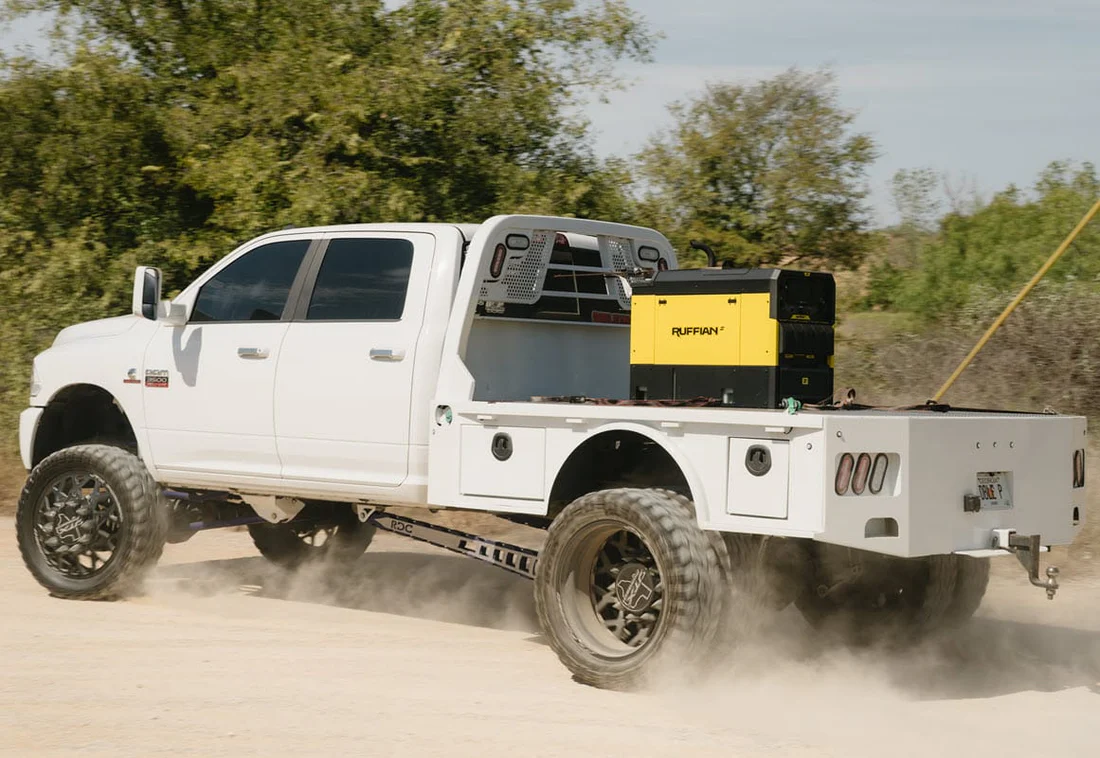

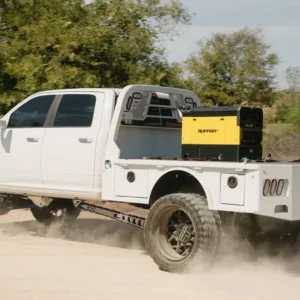

Reduced footprint

Perfect for mounting on service trucks
Tested in the harshest environments

To meet the highest global standards
3-year warranty

By ESAB on welder/generator

By Kohler on engine

ESAB’s industry-leading service and support means that if you do need help with your welder, you will be protected. 100% SATISFACTION GUARANTEE means that if there’s anything you’re not completely satisfied with in your first 100 days with your new welder, ESAB will make it right, even if it means giving you your money back. It’s all part of ESAB’s Iron Clad Pledge to its customers.
